14 Gauge PTFE Wire, with Teflon PTFE Insulation,14 gauge wire is approximately 2.03 m㎡.
Our PTFE wire can work between -60 ~ + 250 ℃, short-term can work at 350℃
The process is Extruded PTFE (PolyTetraFluoroEthylene)
Customized Available: All conductors, colors, constructions, or lengths.

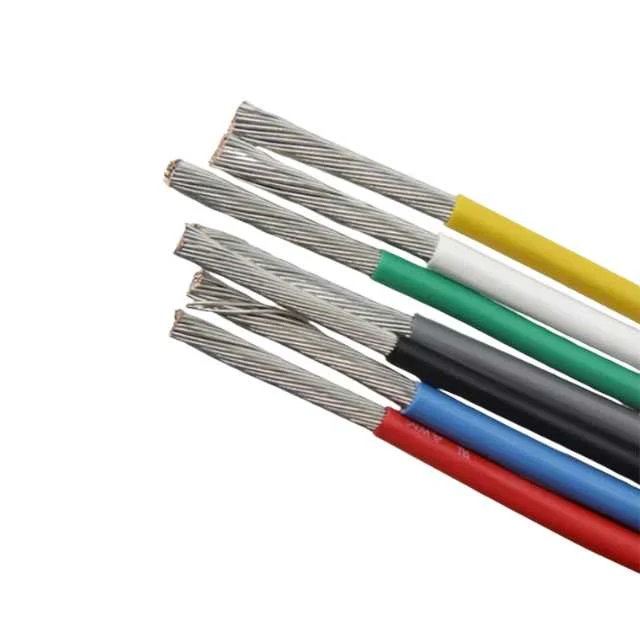

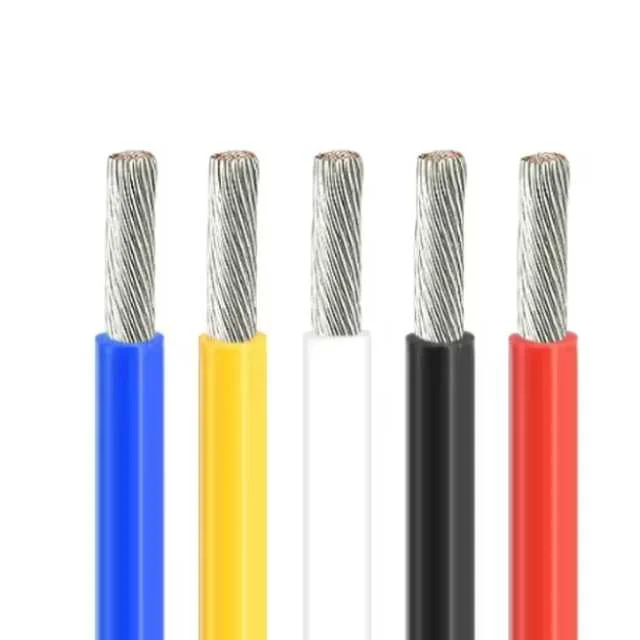

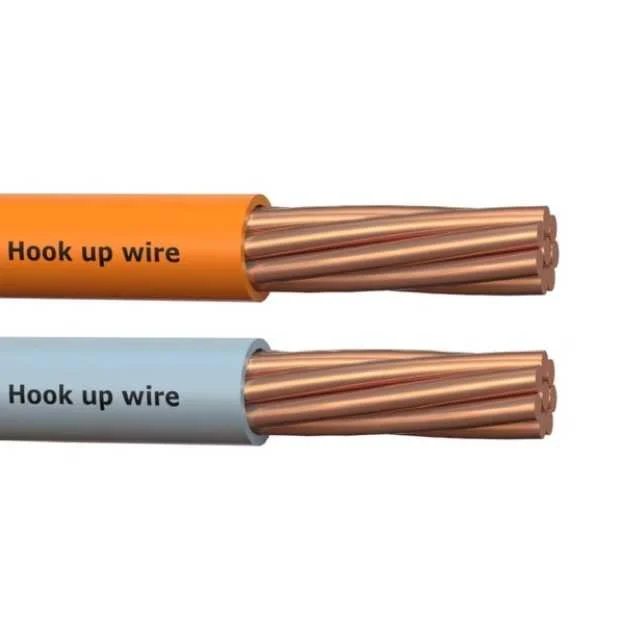

Peflon 14 Gauge PTFE Wire with teflon insulated, it provides many kinds of conductors to choose from, OCF copper, Tinned copper, nickel-plated copper, and silver-plated copper.
You can choose a suitable conductor for your application.

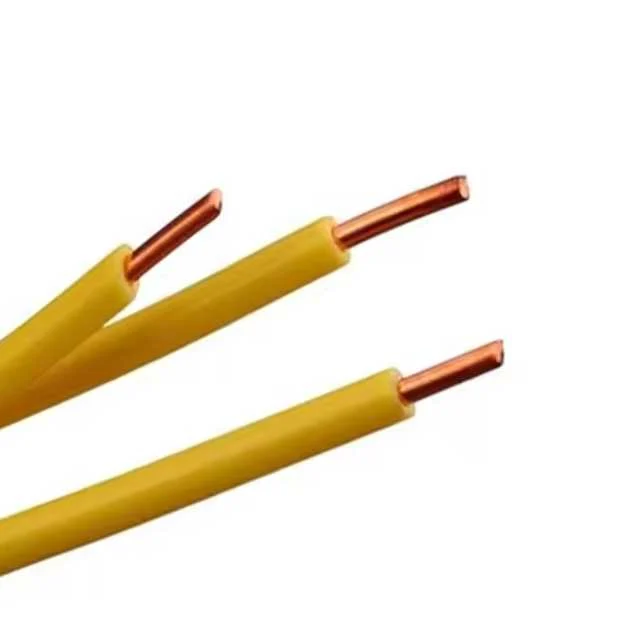

Peflon 14 conductor constructions have many types of conductor, the normal type is Solid and stand constructions.

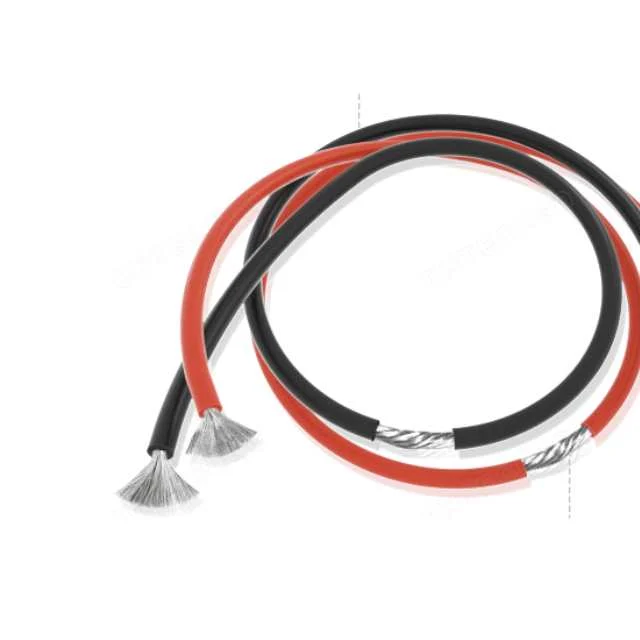

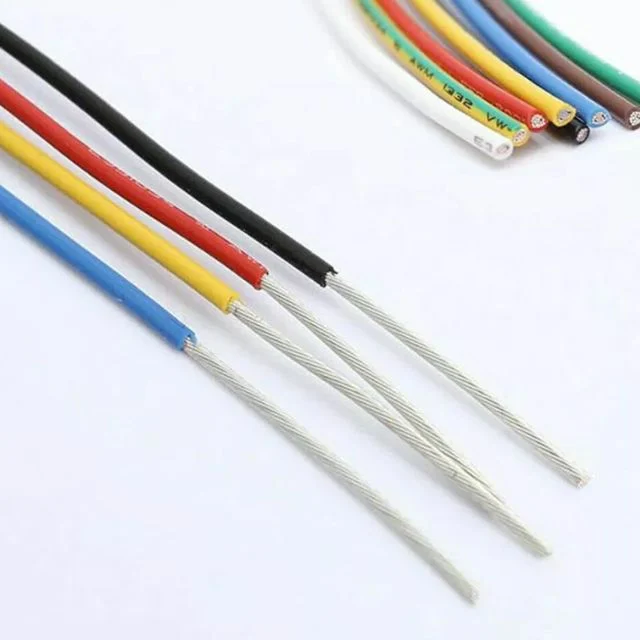

7-strands, 14 strand, and 400 strand.
14 gauge PTFE wire has 3 types by NEMA HP, M16878/4(Type E), M16878/5(Type EE), and M16878/6(Type ET).
They have the same conductor, but different insulation.
M16878/4: PTFE Insulation thickness .010″, Voltage Rating:600V UL 1213. Used for the military.
M16878/5: PTFE Insulation thickness .015″, Voltage Rating:1000V UL 1180. Used for gasoline, oils, fluids, and chemicals.
M16878/6: PTFE Insulation thickness .006″, Voltage Rating:250V UL 1371. Used for extreme temperatures or corrosion-prone environments
Peflon 14 Gauge PTFE Wire with great properties.
Peflon produces the 14 Gauge PTFE Wire using PTFE İnce toz, Paste extrusion, The process includes:
Restriction of Hazardous Substances.
The PTFE Wire is produced a complaint to LLC, RoHS Compliant, CSA, UL-1180, UL758, and UL1581
if you want to Soldering the14 AWG Teflon Hook-up wire, you need to follow the standard.
Each section should be at least 50 feet, and can’t be more than 4 sections per 1,000 feet, 8 sections per 2,000 feet, and 9 sections per 3,000 feet.
