FEP for Cable & Wire — Low-Smoke, Low-Halogen Insulation Resin
FEP (fluorinated ethylene propylene) is a key wire-and-cable fluoropolymer — low-smoke, low-halogen (Cl/Br) and flame-resistant, with a wide MFR range for both extrusion and injection molding.
- Five wire-grade FEP pellets, MFR 2.0–20 g/10 min, matched to line speed and wall thickness
- Cross-reference support against Teflon™ FEP grades — no spec re-engineering required
- KKDIK / REACH / FDA documented — trial samples available before you commit
Kablo & Tel için Peflon FEP
Peflon’un FEP cable resins offer a wide range of MFRs (2.0 to 32 g/10 min) and suit both extrusion and injection molding. Our fluorinated ethylene propylene (FEP, CAS 25067-11-2) wire resins are low-smoke, low-halogen (Cl/Br) and produced without PFOA or PFAS. Peflon FEP grades used in plenum-rated communications cable are formulated to support the fire and smoke performance required by UL 444, the standard for communications cables referenced by NEC Article 800 CMP ratings — confirm compliance with your cable manufacturer’s own UL listing.
Its wire-grade FEP resin makes flexible cables with high melt strength, stable processing temperatures and excellent resistance to chemicals and solvents, with operating temperatures from −80 °C to 200 °C (−112 °F to 392 °F). These five grades share the same base resin as Peflon’s broader 10-grade FEP catalog — if your process needs a coating-grade dispersion or powder instead, see the full range there.
FEP Cable & Wire Properties
Wire and cable buyers specify FEP primarily on its electrical and thermal properties — the values below are typical for Peflon’s wire-grade FEP pellets.
| Özellik | Tipik Değer | Notlar |
|---|---|---|
| Dielektrik Sabiti | ~2.1 (1 MHz) | Low and stable across frequency — preserves signal integrity |
| Dağılma faktörü | Çok düşük | Sınıf düzeyine bağlı |
| Erime noktası | 260 ± 5°C | — |
| Sürekli çalışma sıcaklığı | −80°C to 200°C | −112°F to 392°F |
| Flame performance | >800°C before burning/smoking | Supports low-smoke, plenum-rated (CMP) constructions |
| Flex life | 10M+ cycles | Sınıf düzeyine bağlı |
| Halogen content | Low-halogen (Cl/Br) | Per IEC 61249-2-21 — fluorine itself is not restricted by this standard |
FEP Wire & Cable Grades & Data Sheets
Five of Peflon’s ten FEP pellet grades are specifically suited to wire and cable insulation/jacketing, spanning MFR 2.1–20 g/10 min for different line speeds and wall thicknesses. Click a grade to download its Technical Data Sheet (PDF). For the full 10-grade FEP catalog (including dispersion and powder forms), see Peflon FEP.
| Derece | MFR (g/10 dk) | Özellik | Tipik Uygulama |
|---|---|---|---|
| PF-302 | 2.1–4.0 | Coating grade — equivalent to Teflon™ FEP 9302X | Borular, borular, kaplamalar, körükler, tel & kablo kılıfları |
| PF-303 | 4.1–8.0 | Hidrofobik | Kablo & tel izolasyonu, küçük borular, enjeksiyon kalıplı parçalar |
| PF-304 | 8.1–12.0 | Geniş sıcaklık aralığı, kimyasal uyumluluk, hidrofobik | Tel izolasyonu, küçük borular, enjeksiyon kalıplı parçalar |
| PF-305 | 12.1–20 | FEP enjeksiyonu, FEP ekstrüzyonu | İnce duvarlı tel & kablo izolasyonu, endüstriyel film |
| PF-311 | 2.1–5.0 | Heat-stress-crack-resistant, 3D-printer FEP | Wire insulation, thin-walled tube |
Note: typical values from technical data sheets, for reference only — confirm final selection by line speed, wall thickness and end use.

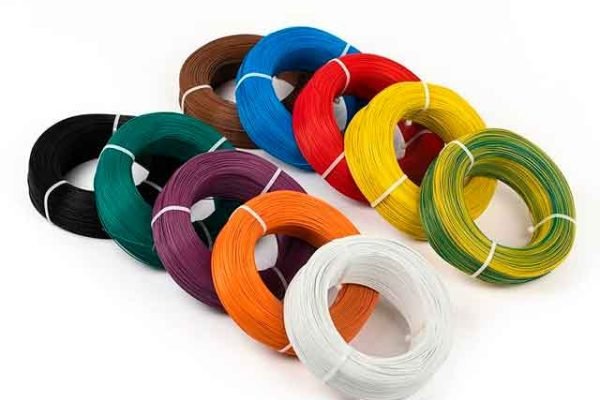

Cable Types Using Peflon FEP Resin
Peflon’s FEP wire resins are extruded by processors into insulation and jacketing across a wide range of cable constructions — from hookup wire to high-temperature spark ignition cable.
Hookup & Control Wire
Processors extrude Peflon FEP onto hookup and control wire conductors where chemical resistance and a wide service-temperature range matter more than bulk insulation cost.
High-Temperature & Spark Ignition Wire
Processors specify Peflon FEP for spark-plug and ignition wire insulation where continuous service above 150°C and dielectric stability under vibration are required.
Shielded & Multi-Conductor Data Cable
Processors extrude thin-wall FEP insulation (PF-305) onto individually shielded conductors for high-speed data and LAN cable, where low, stable dielectric constant preserves signal integrity.
Plenum (CMP) & Low-Smoke Cable
Processors building CMP-rated communications cable specify FEP for its low smoke generation and flame resistance above 800°C, supporting the fire performance tested under UL 444.
How Processors Extrude Peflon FEP Onto Wire & Cable
Processors extrude Peflon FEP pellets onto bare or tinned copper conductor as primary insulation, or over a cabled core as an outer jacket — melt strength and stable processing temperature keep wall thickness consistent at line speed.
Primary Insulation Extrusion
Processors melt-extrude FEP directly onto bare or tinned copper conductor on wire lines, using MFR and melt strength to hold wall thickness at line speed.
Jacket Extrusion Over Cabled Core
Processors extrude a higher-MFR FEP jacket over a cabled, shielded core for multi-conductor and data cable constructions.
Foam-Skin Extrusion for High-Speed Data
Processors use a foamed FEP core with a solid skin to lower dielectric constant further for high-speed data cable — see Peflon’s foamed FEP resin guide for the process.
FEP Cable Resin Chemical Compatibility
FEP, pH aralığının tamamında neredeyse tüm endüstriyel asitlere, bazlara ve çözücülere karşı dirençlidir; aşağıdaki istisnalar, bir spesifikasyonu kesinleştirmeden önce dikkate alınması gereken nadir durumlardır.
| Kimyasal | Sınıf | Rezistans |
|---|---|---|
| Sulfuric, hydrochloric, nitric, hydrofluoric acids | Mineral asit | Excellent, full concentration range |
| Sodyum hidroksit (40%) | Güçlü temel | Mükemmel |
| Acetone, methanol, toluene | Solvent | Mükemmel |
| Klorlu çözücüler | Klorlu çözücü | Mükemmel |
| Erimiş alkali metaller | — | Not recommended, any temperature |
| Elementel flor | — | 300°C'nin üzerinde kullanılması önerilmez. |
| Basınç altında bazı florlu çözücüler | — | 200°C'nin üzerinde sınırlıdır |
Peflon FEP Tel Reçinesi Neden Kullanılır?
Cable and wire manufacturers qualifying a new FEP resin source weigh regulatory documentation, MFR consistency and flame/smoke performance as heavily as price.
PFOA-Free, PFAS-Free & Low-Halogen
Peflon abandons traditional perfluorooctanoate salts and uses advanced production technology — free of PFOA and PFAS, compliant with EU REACH. Peflon FEP is also low-halogen (Cl/Br), per IEC 61249-2-21 — note that as a fluoropolymer, FEP inherently contains fluorine, which this standard does not restrict.
- REACH-compliant, PFOA/PFAS-free production
- Low-halogen (Cl/Br) per IEC 61249-2-21
Flame Resistance & Signal Integrity
Peflon FEP withstands temperatures above 800°C before burning, smoking or decomposing, supporting plenum-rated (CMP) constructions under UL 444 — while its low, stable dielectric constant (~2.1) preserves signal integrity in coaxial, LAN and high-speed data cable.
- Low smoke generation above 800°C
- Stable dielectric constant across frequency
Extreme Flexibility, Wide MFR Range
High flex performance — wires can continuously flex up to and beyond 10 million cycles. Five grades span MFR 2.1–20 g/10 min, matched to your line speed and wall thickness rather than a one-size-fits-all resin.
- 10M+ flex cycles, grade-dependent
- Grade cross-reference support against your current spec
Easy to Process, Documented Second Source
With a melting point of 260 ± 5°C, Peflon FEP has high melt strength and stable processing temperatures, making it easy to melt-extrude. Qualify Peflon as a documented second source alongside Daikin, Chemours or AGC — trial samples available before you commit.
- Stable processing window for consistent wall thickness
- Trial samples shipped with matching TDS
Kablo & Teller için FEP — Sıkça Sorulan Sorular
Tel & kablolar için kullanılan Peflon FEP hangi MFR aralığını kapsar?
Peflon, 2,0 ila 32 g/10 dk arasında geniş bir MFR aralığında FEP kablo reçineleri sunarak, hem ekstrüzyon hem de enjeksiyon kalıplama için erime akışını hat hızı ve duvar kalınlığıyla eşleştirmenizi sağlar.
FEP, plenum (CMP) kabloları için uygun mudur?
Yes. FEP is a primary plenum-rated insulation material thanks to its low smoke generation, flame resistance and low, stable dielectric constant — widely used in CMP, coaxial and high-speed data cable, tested against UL 444.
FEP kablo izolasyonunun sıcaklık dayanım derecesi nedir?
Peflon FEP cable jacketing runs continuously from −80°C to 200°C (−112°F to 392°F) and resists fire above 800°C before decomposing, with a melting point of 260 ± 5°C.
Is Peflon FEP for wire low-halogen and PFOA-free?
Yes — it is low-halogen (Cl/Br, per IEC 61249-2-21), low-smoke and produced without PFOA or PFAS, passing REACH testing and compliant with EU standards. As a fluoropolymer, FEP inherently contains fluorine, which this standard does not restrict.
FEP, yüksek hızlı veri ve koaksiyel kablolar için neden iyidir?
FEP, düşük ve kararlı bir dielektrik sabiti (~2,1) ve düşük kayıp faktörüne sahiptir; bu özellikler, yüksek frekanslarda sinyal bütünlüğünü korur ve alev direnciyle birleştiğinde, koaksiyel, LAN ve yüksek hızlı veri kabloları için ideal hale gelir.
Hangi kablo türlerinde Peflon FEP reçinesi kullanılır?
Koaksiyel, kablo kanalı, kuyu içi, LAN, yüksek hızlı veri, ısıtma, plenum ve kontrol kabloları; hem dış kılıf hem de birincil izolasyonlu olmak üzere çok çeşitli tel boyutları ve duvar kalınlıklarında.
Related Products of FEP for Cable & Wire
FEP
Need coating-grade dispersion or powder instead of pellets? See Peflon’s full 10-grade FEP catalog.
PFA Malzeme Tedarikçisi | Peflon
Need service above FEP’s 200°C ceiling? Peflon also supplies PFA, extending to 260°C with full melt-processability.
PTFE İnce Toz
Need PTFE’s higher continuous-use ceiling for hookup wire? Peflon also supplies PTFE fine powder for wire wrap and tape.
Kablo & Tel için FEP Teknik Desteği
FEP tel reçinesinin özelliklerinin belirlenmesi ve kullanımı, MFR ve kalite seçimi, sıcaklık sınırları, ekstrüzyon ayarları ve uyumluluk gibi gerçek mühendislik sorularını gündeme getirir. Teknik kütüphanemiz, Peflon malzeme ekibinden pratik ve uygulamalı rehberlik sunmaktadır.
Tel Endüstrisinde Uygun FEP Reçinesi Nasıl Seçilir
How to match FEP grade and MFR to your wire line speed and wall thickness.
Otomotiv Kablolaması İçin En Uygun PTFE Tel Boyutu Nedir?
Sizing guidance for automotive-grade fluoropolymer wire.
Dış Mekan Kullanımı İçin Hangi Boyutta Koaksiyel Kablo Gerekir?
Coaxial cable sizing considerations for exterior installation.
Ücretsiz FEP tel & kablo örneği isteyin.
Tell us your cable type, target MFR, wall thickness and volume — our engineers will recommend the right FEP grade, send the TDS and reply within 24 hours.
