FEP Micro Powders for Coatings, Inks, Lubricants & Plastics Compounding
Source FEP micro powders from Peflon and replace your incumbent Daikin Neoflon MP or 3M Dyneon FEP additive supply. Get PF-3P04 self-lubricating grade and PF4620 dispersion grade — both white, D50 4 μm, with a free 1 kg sample on first request.
- 100% PFOA-free production, SGS / REACH / RoHS / SVHC documented per batch
- Two grades — PF-3P04 self-lubricating + PF4620 dispersion, both D50 4 μm and whiteness ≥ 99%
- Free 1 kg sample in 3–7 days, mass production in 2 weeks
What are FEP Micro Powders?
What is FEP micropowder, and how do coating R&D teams compare it against PTFE micropowder before locking a supplier?

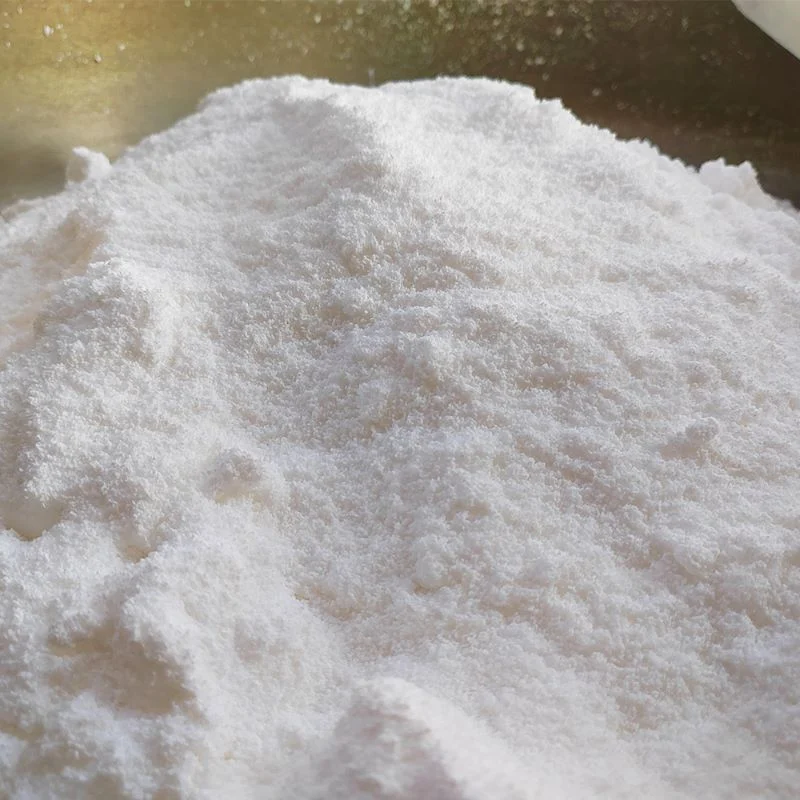

FEP micro powders are white, ultra-fine fluoropolymer powders made from a copolymer of tetrafluoroethylene and hexafluoropropylene. Their stable molecular structure delivers flame resistance, chemical inertness, low friction, and weather stability — the same property set you expect from FEP resin, but in a particle size that disperses cleanly into paints, inks, lubricants, and engineering plastics.
Peflon produces FEP micro powders through controlled emulsion copolymerization followed by cryogenic micronization, with 65+ years of fluoropolymer manufacturing experience behind every batch. Both PF-3P04 (self-lubricating, D50 3.5–4.5 μm) and PF4620 (dispersion, D50 4 μm) hit ≥ 99% whiteness and a 260 ± 5 °C melting point.
Request a free 1 kg sample to test on your line, or compare specs against your incumbent grade before talking to sales.
FEP Micro Powder Categories & Grades
Your application drives grade selection for FEP micro powders. Pick by downstream process — electrostatic spray for anti-corrosion lining, dispersion blending for industrial paint, dry-mix compounding for engineering plastics — and by particle size for ink, toner, and lubricant additive. Below are the 8 categories Peflon supports today, with PF-3P04 and PF4620 as the standard 4 μm grades and 10/30 μm available as custom production.
FEP Micro Powder for Powder Coating Additive
Anti-friction and hot-spot modifier for epoxy, polyester, and polyurethane powder coatings on industrial and architectural substrates. Improves slip, abrasion, and release at 1–3% loading.
Explore FEP Micro Powder for Powder Coating →FEP Micro Powder for Ink & Toner
Anti-blocking and wear-reducing additive for laser printer toner, offset inks, and security printing varnish. Tight D50 keeps printhead nozzles clean across long runs.
Explore FEP Micro Powder for Ink & Toner →FEP Micro Powder for Lubricants & Greases
Solid-lubricant booster for high-temperature greases, chain oils, and assembly pastes. Cuts friction at metal interfaces where mineral oil thickeners alone run out of margin.
Explore FEP Micro Powder for Lubricants →FEP Micro Powder for Plastics Compound Modifier
Low-friction modifier for PA, POM, and PEEK injection compounds. Reduces wear at sliding interfaces in bushings, gears, and bearing cages without breaking the polymer matrix.
Explore FEP Micro Powder for Plastics Compound →FEP Micro Powder D50 4 μm — PF-3P04 & PF4620
The two standard Peflon 4 μm grades shipped from stock: PF-3P04 for self-lubricating chemical lining, PF4620 for dispersion blending in industrial paint and protective coatings.
Explore PF-3P04 & PF4620 Grades →FEP Micro Powder D50 10 μm (Custom on Request)
Medium-fine grade for formulations that need slower drop-in and reduced surface texture. Custom production starts at 500 kg MOQ with 4-week lead time.
Explore Custom D50 10 μm Grade →FEP Micro Powder D50 30 μm (Custom on Request)
Coarse grade for high-loading mechanical compounds and dry-blend sintered bearings. Custom production starts at 500 kg MOQ with 4-week lead time.
Explore Custom D50 30 μm Grade →FEP Micro Powder Equivalent to Daikin MP, Chemours TE-9050 & Shamrock FluoroSlip
Send your incumbent supplier's spec or product code and we map a Peflon grade for trial. Covers Daikin Neoflon MP series, Chemours TE-9050, Shamrock FluoroSlip, and legacy 3M Dyneon FEP grades.
Explore Equivalent Grade Mapping →Specifications of Micronized FEP Grades PF-3P04 and PF4620
| Property | PF-3P04 (self-lubricating) | PF4620 (dispersion) | Test Method |
|---|---|---|---|
| Whiteness | ≥ 99 % | ≥ 99 % | Internal |
| Average Particle Size (D50) | 3.5 – 4.5 μm | 4 μm | Laser diffraction |
| Melting Point | 260 ± 5 °C | 260 ± 5 °C | DSC, ASTM D3418 |
| Bulk Density | 300 – 400 g/L | (request COA) | ASTM B527 |
| Max Processing Temp | < 400 °C | < 400 °C | Internal |
| Recommended Processing | Electrostatic spray, fluidized bed | Dispersion blending | — |
| Typical End-Use | Anti-corrosion lining, pipe interior, roller surface | Hull, high-rise external, coil, highway facility coating | — |
| Compliance | SGS / REACH / RoHS / SVHC | SGS / REACH / RoHS / SVHC | Per batch COA |
| Packaging | 25 kg paper bucket + FEP inner liner | 25 kg paper bucket + FEP inner liner | — |
| Equivalent Grade Reference | Daikin Neoflon MP series / Shamrock FluoroSlip | Chemours Teflon FEP TE-9050 / Solvay Algoflon F5 | Mapping on request |
Why Buy FEP Micro Powders from Peflon
You can't afford a FEP fluoroadditive switch that drifts your coating gloss or breaks your lubricant rheology. Peflon ships FEP micro powders with batch-locked whiteness, full PFOA-free documentation, equivalent grade mapping to your incumbent supplier, and a 2-week mass production cycle. Below are the four ways we earn your repeat order.
Batch Consistency: Whiteness ≥ 99% and D50 Tolerance Verified Per Lot
You buy FEP micro powders to hit a specific gloss, particle distribution, or friction coefficient. We hold whiteness above 99% and verify D50 on a laser diffraction rig per lot — so the coating you tuned with sample 0001 still runs clean at batch 0500.
- Whiteness ≥ 99% verified per batch
- D50 tolerance ±0.5 μm on PF-3P04 (3.5–4.5 μm)
- Melting point 260 ± 5 °C confirmed by DSC
- 3-year sealed sample retention for every production lot
PFOA-Free Production with SGS, REACH, RoHS & SVHC Per-Batch Documentation
You face EU and US compliance audits every quarter. Peflon FEP micro powders are made on PFOA-free reactor lines, with each batch shipping with a COA covering SGS verification, REACH and SVHC status, and RoHS compliance. Read more on our about page.
- 100% PFOA-free reactor train, GC-MS verified per batch
- REACH registration and SVHC candidate list checked monthly
- RoHS compliant for restricted heavy metals
- SGS third-party verification on request
Equivalent Grade Mapping to Daikin Neoflon MP, Chemours TE-9050, and Shamrock FluoroSlip
Re-qualification of a new FEP micro powder supplier can take 6–12 months. Send your incumbent supplier's grade or your current SDS, and we map a Peflon grade for trial against the same melting point, whiteness, and particle distribution — no round-one requalification needed.
- Incumbent grade mapped against PF-3P04 or PF4620 on first sample
- Side-by-side COA shipped with sample shipment
- Application engineer call-in support during your line trial
- 3M Dyneon FEP additive migration program for buyers facing supply gaps
From Free Sample to Mass Production in 2 Weeks
Most FEP micro powder suppliers force a 200 kg MOQ before they ship anything. Peflon supports the way your team actually buys: R&D tests a free 1 kg sample, supply chain validates a 25 kg trial batch, then buyers lock 0.5 MT or larger volumes that ship within 2 weeks. Start the conversation on our contact page.
- Stage 1 — Free 1 kg sample, DHL/FedEx in 3–7 days, COA included
- Stage 2 — Trial batch from 25 kg, ships in 1–2 weeks
- Stage 3 — Mass production from 0.5 MT, ships in 2 weeks
- One application engineer assigned across all three stages
How We Make FEP Micro Powders: From TFE/HFP Monomer to Micronized Pellets
1. TFE & HFP Monomer Purification
We feed reactor-grade tetrafluoroethylene and hexafluoropropylene through distillation to remove acidic impurities that would shorten polymer chains and dull the whiteness of your finished powder.
2. Emulsion Copolymerization of TFE + HFP
Controlled emulsion polymerization of tetrafluoroethylene with hexafluoropropylene gives a copolymer that melts near 260 °C — lower than PTFE and ideal for additive dispersion. Reactor temperature, pressure, and initiator dosing are logged per batch.
3. Coagulation, Drying & Primary FEP Resin
The polymer slurry is coagulated, washed, and dried under inert atmosphere into primary FEP resin — the same intermediate stream that feeds our standard FEP resin grades for cable and tubing.
4. Cryogenic Grinding & Micronization to D50 4 μm
Primary resin is cryogenically milled below -100 °C, then classified through air separators that lock D50 at 4 μm for PF-3P04 and PF4620. Cold grinding preserves the molecular weight that conventional milling would degrade.
5. Lab QC (Whiteness, D50, Melting Point, Bulk Density)
Every batch is tested for whiteness, particle distribution, melting point, and bulk density before release. Results print directly on the COA you receive with the shipment — no surprises at goods-in inspection.
6. Sample Retention, COA & 25 kg Paper Bucket Packaging
We retain a sealed sample of each batch for 3 years, then pack the powder into 25 kg paper buckets with FEP inner liner and desiccant. Pallets ship from our Quzhou production facility under HS code 3904.69.
Applications & Industries for FEP Micro Powders
FEP powder for coating systems behaves like a hybrid lubricant and binder modifier: it lowers friction at the spray gun, smooths the cured film, and stays inert under chemical or thermal stress. The same particle that boosts a paint film also stabilizes a high-temperature grease, cleans a printer toner formulation, and toughens a PEEK injection compound. Below are the five industries where Peflon ships in volume today.
Non-stick & Industrial Coatings
Anti-corrosion paints for hulls, high-rise external walls, coil-coated panels, and highway barriers — wherever a tough nonstick surface needs to last 10+ years against weather and chemical attack.
Chemical Processing Lining
Electrostatic-sprayed and fluidized-bed coatings for pipe interiors, valve bodies, and reactor inner walls in acid, alkali, and solvent service. PF-3P04 is the workhorse grade here.
Inks, Toners & Specialty Printing
Anti-blocking additive for laser printer toner, slip booster for offset inks, and matte modifier for security printing varnish. The 4 μm grades disperse without clogging printhead nozzles.
Lubricants & Greases for Industrial Use
Solid-lubricant booster for high-temperature greases, chain oils, and assembly pastes. Cuts wear at metal-on-metal contacts where mineral oil thickeners alone run out of margin.
Plastics Compounding for Engineering Polymers
Low-friction modifier blended into PA, POM, and PEEK injection compounds. Read the PTFE vs FEP additive selection guide before locking your loading level.
Compliance & Trust for FEP Micro Powders
Each certification on this page maps to a real audit you can pass on Peflon FEP micro powders. SGS verification confirms whiteness, particle distribution, and contamination limits per batch. REACH and SVHC let your EU import broker file without holdups. PFOA-free batches arrive with GC-MS data so your QA team signs off the same day.
Trusted by leading North American coating brands, European lubricant formulators, and Asian battery and electronics manufacturers.
FAQ about FEP Micro Powders
How do I request a free FEP micro powder sample, and what's included?
Send your target grade or your incumbent supplier's spec sheet through the inquiry form. We ship a 1 kg sample by DHL or FedEx within 3–7 days, packed with the COA, SDS, and a mapping note against Daikin Neoflon MP, Chemours TE-9050, or your current grade. No charge, no minimum order.
Can Peflon FEP micro powder replace Daikin Neoflon MP, Chemours TE-9050, or Shamrock FluoroSlip?
Most customers run a one-line trial instead of a full re-qualification. We map your incumbent grade against PF-3P04 or PF4620 — matching melting point, whiteness, and D50 — and ship the sample with a side-by-side data sheet your R&D team verifies on the same coating or compounding run.
What are the MOQs for sample, trial batch, and mass production?
Sample is free up to 1 kg. Trial batch starts at 25 kg and ships in 1–2 weeks. Mass production starts at 0.5 MT and ships in 2 weeks. Larger annual contracts unlock fixed pricing across all three stages.
Are Peflon FEP micro powders PFOA-free and REACH compliant?
Yes. Production runs on PFOA-free reactor trains, with each batch reporting non-detect PFOA via GC-MS. REACH registration, SVHC candidate-list status, and RoHS declarations ship with the COA. SGS third-party verification is available on request.
What HS code and shipping options apply to FEP micro powder?
FEP micro powder ships under HS code 3904.69 (other fluoropolymers in primary forms) as a non-dangerous good. We support FOB, CIF, and DDP terms, file the origin certificate, and route by DHL, FedEx, or sea freight depending on volume. Contact our logistics team for destination-specific paperwork.
What's the difference between PTFE micropowder and FEP micro powder?
PTFE micropowder is harder, has a higher melt point (327 °C), and works mainly as a solid lubricant in greases and plastics. FEP micro powders melt at 260 °C, disperse more easily into paint and ink, and dominate in coating, printing, and dispersion applications where film integration matters.
Technical Resources for FEP Micro Powders
Pick the resource that matches your current question. Compare FEP micro powder against PTFE micropowder before requesting a sample, work through the migration path off 3M Dyneon FEP additive, or read how we tune cure windows for powder coating with FEP additives. If you also need PTFE, PFA, or FEP dispersion grades, browse our broader fluoropolymer catalog for one-supplier consolidation.
[Blog Title 1 — PTFE Micropowder vs FEP Micro Powder: Choosing the Right Additive]
[Side-by-side comparison of friction, dispersion, and cost across coating, lubricant, and plastics applications.]
Read the PTFE vs FEP additive guide →[Blog Title 2 — Migrating Off 3M Dyneon FEP Additive: A 60-Day Playbook]
[Step-by-step plan covering sample requalification, parallel runs, and supply chain risk mapping.]
Open the 3M Dyneon migration playbook →[Blog Title 3 — Cure Window Tuning for FEP Micro Powder in Powder Coating]
[Walkthrough on oven temperature, line speed, and substrate prep for industrial coating applications.]
See the cure window tuning guide →Related Fluoropolymer Powders & Resins
When your formulation needs more than FEP micro powders, consolidate your fluoropolymer purchase order with Peflon. One supplier, one shipment, one COA pack — across PTFE micropowders, PFA micro powders, standard FEP resin, and FEP dispersion — under the same PFOA-free reactor train and REACH documentation chain.
PTFE Micropowders
Higher melt point (327 °C) solid lubricant for grease, oil, and PTFE-modified engineering plastics.
Explore PTFE Micropowders →PFA Micro Powders
High-purity PFA powder for semiconductor wet process coatings and ultra-clean fluid-handling lining.
Explore PFA Micro Powders →FEP Resins
Melt-processable FEP pellets for cable insulation, tubing, and chemical lining — same Peflon source as our micro powder.
Explore FEP Resins →FEP Dispersions
Aqueous FEP dispersion for impregnation coatings, fabric finishes, and roller release systems.
Explore FEP Dispersions →Start Your FEP Micro Powder Sourcing with Peflon
Send your incumbent supplier's grade or the spec you need to hit. We respond within 24 hours covering EST, CET, and JST business hours, ship a free 1 kg sample with COA, SDS, and a grade-mapping note, then walk you through trial batch and mass production in 2 weeks. Prefer email? Reach us at [email protected].
