13 Grades

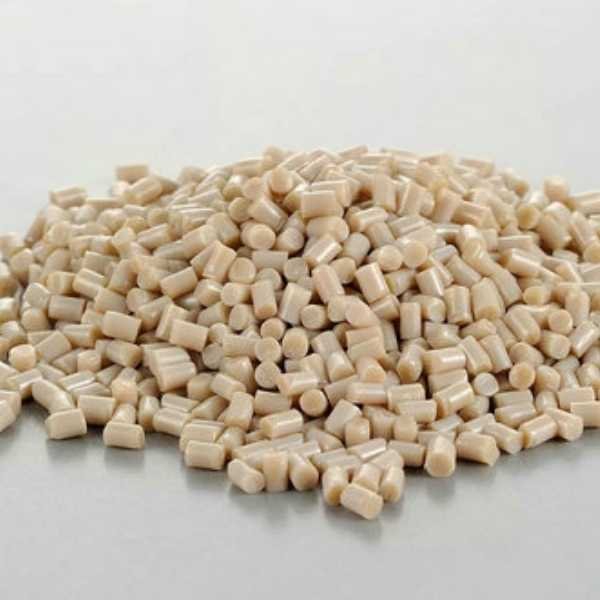

Pure Resin Pellets
General-purpose PEEK pellets across low, medium, high and ultra-high flow — extrusion, injection and thin-wall molding.
PF-1 Series · 92 PEEK Grades
Peflon PEEK Material Manufacturer
Peflon PEEK raw material portfolio covers pure resin pellets and powders, glass fiber and carbon fiber reinforced grades, friction-and-wear resistant compounds, ceramic-modified, medical implantable and application-specific PEEK for semiconductors, anti-static, atomizer, gear, bearing and color-customized projects.
- 8 product series · 92 standard grades
- PF-1 prefix — unified PEFLON brand code
- OEM & ODM — color, filler ratio, particle size customizable
- Free samples, REACH / RoHS document support
8 Series
Product Portfolio
92 Grades
PF-1 PEEK Lineup
152–339 °C
HDT Range
REACH · RoHS
Compliance Ready
Product Portfolio
Peflon PEEK raw materials are organized into 8 series — choose by flow grade, filler type, particle size or end-application target. Custom blends available on top of every series.
8 PEEK Product Series
16 Grades
Pure Resin Powders
Coarse powders and ultra-fine powders (D50 13–99 μm) for compression molding, electrostatic spray, prepreg, 3D printing and modification base.
20 Grades
Glass Fiber Reinforced
5–45% glass-fiber filled PEEK for higher rigidity, lower warpage and improved HDT — structural insulators.
12 Grades
Carbon Fiber Reinforced
5–40% carbon-fiber PEEK plus high-modulus HMF series — high strength, light weight, excellent creep resistance.
11 Grades
Friction & Wear Resistant
PTFE / carbon / graphite tribological compounds for bearings, seals, sliding parts and oil-free running.
5 Grades
Ceramic Modified
10–30% ceramic-filled PEEK for high rigidity, dimensional stability and precision-machined parts.
2 Grades
Medical Implantable Grade
Implantable PEEK pellets with biocompatibility evaluation and master-file registration support.
13 Grades
Application-Specific
Wafer carriers, anti-static (ESD), atomizer, color customization and special-purpose modified PEEK.
Grade Code Guide
The PEFLON PF-1 grade code is a semantic naming system — letters indicate filler / form, numbers indicate filler percentage or particle size, and the flow suffix indicates processing window.
How to Read the PF-1 PEEK Grade Code
| Code Fragment | Meaning | Example | Note |
|---|---|---|---|
| PF-1 | PEFLON PEEK Raw Material Series | PF-1G-M | Unified external prefix. |
| G / P | Pellet / Coarse Powder | PF-1G-H, PF-1P-M | G suits injection or extrusion; P suits compression molding, powder processing or modification. |
| PF / UPF | Fine powder / Ultra-fine powder | PF-1PF50-H, PF-1UPF22-H | Trailing number = D50 particle size in μm. |
| GL / CA | Glass fiber / Carbon fiber reinforced | PF-1GL30-H, PF-1CA20-M | Number = filler weight percentage (e.g. GL30 ≈ 30% glass fiber). |
| FC / FE / GHM | Friction & wear resistant systems | PF-1FC30-H, PF-1FE20-L | For bearings, seals, sliding friction and oil-free lubrication. |
| CM | Ceramic modified | PF-1CM20-M | High rigidity, dimensional stability, precision machining. |
| L / M / H / UH | Flow rating: Low / Medium / High / Ultra-High | PF-1G-L, PF-1G-H | Quick-read processing window selector. |
Typical Properties
Reference values for technical screening. Final selection should be validated by lab testing on your specific tooling and processing window.
Typical Property Ranges by Series
| Series | Tensile Strength (MPa) | Elongation at Break (%) | Flexural Modulus (GPa) | HDT (°C) | MFR (g/10 min) | Density (g/cm³) |
|---|---|---|---|---|---|---|
| Pure Resin Pellets / Powders | 100–110 | 25–45 | 4.0–4.3 | 152–156 | 10 / 14 / 20 / 80 | 1.30 |
| Glass Fiber Reinforced | 145–185 | 2.4–3.3 | 8.5–11.5 | 315–335 | 4.5–40 | 1.43–1.52 |
| Carbon Fiber Reinforced | 205–260 | 1.5–2.0 | 15–23 | 325–339 | 2.3–31 | 1.37–1.40 |
| Friction & Wear Resistant | 140–150 | 2.0–2.2 | 11.5 | 315 | 2.5 / 14 | 1.45 |
| Ceramic / Application-Specific | Confirmed by specific formulation and application project. | |||||
Series 1 · 13 Grades
General-purpose PEEK resin pellets — covering extrusion, general injection and thin-wall injection processing windows by flow rating.
Pure Resin Pellets
| Grade | Flow | MFR | HDT (°C) | Key Features | Process / Use |
|---|---|---|---|---|---|
| PF-1G-L-EX | Low | 10 | 152 | Profile extrusion, pure resin, insulating, high toughness, high purity | Injection & Extrusion |
| PF-1G-LB | Low | 10 | 152 | Profile extrusion, insulating, high toughness, black pure resin | Injection & Extrusion |
| PF-1G-L-GR | Low | — | 152 | Gear-specific, sealing ring, dimensional stability, fatigue resistant | Injection & Extrusion |
| PF-1G-M | Medium | 20 | 152 | Insulating, high toughness, high purity, medium-flow pure resin | Injection & Extrusion |
| PF-1G-MB | Medium | 20 | 152 | Insulating, high toughness, high purity, medium-flow black pure resin | Injection & Extrusion |
| PF-1G-M-GR | Medium | — | 152 | Pure resin, insulating, high toughness, gear-specific | Injection & Extrusion |
| PF-1G-M-BIO | Medium | 14 | 152 | Biocompatibility, ultra-pure, ultra-filtration | Injection & Extrusion |
| PF-1LG-M-CB | Medium | — | 152 | Ultra-pure, wire & cable insulation, ultra-filtration | Extrusion |
| PF-1G-H-TW | High | 80 | 156 | Insulating, high purity, high-flow, thin-wall parts | Injection & Extrusion |
| PF-1G-HB | High | 80 | 156 | Insulating, high purity, thin-wall, high-flow black pure resin | Injection & Extrusion |
| PF-1G-H-UPT | High | — | 156 | Ultra-high flow, ultra-pure, thin-wall injection parts | Injection & Extrusion |
| PF-1G-UH-PI | Ultra-High | — | — | Ultra-high flow, melt-impregnated prepreg material | Injection & Extrusion |
| PF-1G-UHB | Ultra-High | — | — | Ultra-high flow, melt-impregnated prepreg, black | Injection & Extrusion |
Series 2 · 16 Grades
Coarse and ultra-fine powder grades — for compression molding, electrostatic spray, prepreg, 3D printing and modification base material.
Pure Resin Powders
| Grade | Type | Flow | MFR | D50 / Mesh | Process / Use |
|---|---|---|---|---|---|
| PF-1P-UH | Coarse Powder | Ultra-High | — | — | Modification base, fine-powder feedstock · Extrusion |
| PF-1P-H | Coarse Powder | High | 80 | — | Modification base, fine-powder feedstock · Extrusion |
| PF-1P-M | Coarse Powder | Medium | 20 | — | Modification base, fine-powder feedstock · Extrusion |
| PF-1P-L | Coarse Powder | Low | 10 | — | Modification base, fine-powder feedstock · Extrusion |
| PF-1PF50-H | Fine Powder | High | 80 | 50 μm / 300 mesh | 3D printing, modification material · 3D print & Prepreg |
| PF-1UPF26-H | Ultra-Fine | High | 80 | 26 μm / 550 mesh | Modification base, prepreg · Prepreg |
| PF-1UPF22-H | Ultra-Fine | High | 80 | 22 μm / 650 mesh | Prepreg, electrostatic spray · Spray & Prepreg |
| PF-1UPF19-H | Ultra-Fine | High | 80 | 19 μm / 750 mesh | Prepreg, electrostatic spray, compression molding · Spray & Prepreg |
| PF-1UPF17-H | Ultra-Fine | High | 80 | 17 μm / 850 mesh | Prepreg, electrostatic spray · Spray & Prepreg |
| PF-1UPF15-H | Ultra-Fine | High | 80 | 15 μm / 950 mesh | Prepreg, electrostatic spray, water-based coating · Spray & Prepreg |
| PF-1UPF13-H | Ultra-Fine | High | 80 | 13 μm / 1000 mesh | Prepreg, electrostatic spray, water-based coating · Spray & Prepreg |
| PF-1PF75-M | Fine Powder | Medium | 20 | 75 μm / 200 mesh | Compression molding · Compression |
| PF-1PF50-M | Fine Powder | Medium | 20 | 50 μm / 300 mesh | 3D printing, compression molding · 3D print & Compression |
| PF-1PF99-L | Fine Powder | Low | 10 | 99 μm / 150 mesh | Compression molding · Compression |
| PF-1PF74-L | Fine Powder | Low | 10 | 74 μm / 200 mesh | Compression molding · Compression |
| PF-1PF50-L | Fine Powder | Low | 10 | 50 μm / 300 mesh | 3D printing, compression molding · Compression |
Series 3 · 20 Grades
5–45% glass-fiber filled PEEK — improved rigidity, dimensional stability, HDT and impact strength for structural and insulating components.
Glass Fiber Reinforced
| Grade | Filler % | Flow | MFR | HDT (°C) | Process / Use |
|---|---|---|---|---|---|
| PF-1GL05-M | 5% | Medium | — | — | Injection & Extrusion |
| PF-1GL10-H | 10% | High | — | — | Injection & Extrusion |
| PF-1GL10-M | 10% | Medium | — | — | Injection & Extrusion |
| PF-1GL13-M | 13% | Medium | — | — | Injection & Extrusion |
| PF-1GL15-H | 15% | High | — | — | Injection & Extrusion |
| PF-1GL15-M | 15% | Medium | — | — | Injection & Extrusion |
| PF-1GL20-H | 20% | High | 40 | 323 | Injection & Extrusion |
| PF-1GL20-HB | 20% (black) | High | 40 | 323 | Injection & Extrusion |
| PF-1GL20-M | 20% | Medium | 11 | 315 | Injection & Extrusion |
| PF-1GL20-L | 20% | Low | 6.5 | 315 | Injection & Extrusion |
| PF-1GL30-UH | 30% | Ultra-High | — | 335 | Injection & Extrusion |
| PF-1GL30-UHB | 30% (black) | Ultra-High | — | 335 | Injection & Extrusion |
| PF-1GL30-H | 30% | High | 28 | 335 | Injection & Extrusion |
| PF-1GL30-HB | 30% (black) | High | 28 | 335 | Injection & Extrusion |
| PF-1GL30-M | 30% | Medium | 6 | 328 | Injection & Extrusion |
| PF-1GL30-MB | 30% (black) | Medium | 6 | 328 | Injection & Extrusion |
| PF-1GL30-L | 30% | Low | 4.5 | 328 | Injection & Extrusion |
| PF-1GL30-LB | 30% (black) | Low | 4.5 | 328 | Injection & Extrusion |
| PF-1GL40-H | 40% | High | — | — | Injection & Extrusion |
| PF-1GL45-H | 45% | High | — | — | Injection & Extrusion |
Series 4 · 12 Grades
5–40% carbon-fiber PEEK plus high-modulus HMF series — high strength, high modulus, light weight and excellent creep resistance.
Carbon Fiber Reinforced
| Grade | Filler % | Flow | MFR | HDT (°C) | Notes |
|---|---|---|---|---|---|
| PF-1HMF40-UH | 40% HMF | Ultra-High | — | — | High-modulus carbon fiber, low friction, exceptional wear · Injection |
| PF-1CA05-M | 5% | Medium | — | — | Wear-resistant, reinforced, heat-resistant |
| PF-1CA10-M | 10% | Medium | — | — | Wear-resistant, reinforced, heat-resistant |
| PF-1CA20-H | 20% | High | 31 | 325 | Reinforced, high-strength, high-load wear |
| PF-1CA20-M | 20% | Medium | 7 | 325 | Reinforced, high-strength, high-load wear |
| PF-1CA20-L | 20% | Low | — | 325 | Reinforced, high-strength, high-load wear |
| PF-1CA30-H | 30% | High | 27 | 339 | Reinforced, high-strength, high-load wear |
| PF-1CA30-M | 30% | Medium | 5 | 336 | Reinforced, high-strength, high-load wear |
| PF-1CA30-L | 30% | Low | 2.3 | 336 | Reinforced, high-strength, high-load wear |
| PF-1CA40-H | 40% | High | — | — | Reinforced, high-strength, high-load wear |
| PF-1CA40-M | 40% | Medium | — | — | Reinforced, high-strength, high-load wear |
| PF-1CAM-M | Specialty | Medium | — | — | ESD requirement, textile-machinery specific |
Series 5 · 11 Grades
PTFE / carbon / graphite tribological systems — for bearings, seals and sliding components in dry-running and high-load environments.
Friction & Wear Resistant
| Grade | Flow | MFR | HDT (°C) | Key Features | Process / Use |
|---|---|---|---|---|---|
| PF-1FC30-H | High | 14 | 315 | Wear resistant, low friction, self-lubricating, injection | Injection & Extrusion |
| PF-1FC30-M | Medium | — | 315 | Low friction, self-lubricating, wear resistant, reinforced | Injection & Extrusion |
| PF-1FC30-L | Low | 2.5 | 315 | Low friction, self-lubricating, automotive-grade, wear resistant | Injection & Extrusion |
| PF-1FC45-M | Medium | — | — | Low friction, self-lubricating, wear resistant, reinforced | Injection & Extrusion |
| PF-1FE20-H | High | — | — | Low friction, sealing parts, lubrication modified, food-machinery wear | Injection |
| PF-1FE20-L | Low | — | — | Low friction, self-lubricating, wear resistant, reinforced | Injection & Extrusion |
| PF-1FE20-LB | Low | — | — | Low friction, self-lubricating, wear resistant, reinforced, black | Injection & Extrusion |
| PF-1GHM-L | Low | — | 152 | Self-lubricating, sucker-rod centralizer, reinforced, wear & impact & corrosion resistant | Injection & Extrusion |
| PF-1FC327 | — | — | — | Reinforced, steel-backed bearing, oil-free self-lubricating, heavy-load, high-torque, heat-resistant | Injection & Extrusion |
| PF-1RD01 | — | — | — | High-torque, low-wear, heat-resistant oil-free bearing | Compression |
| PF-1WT351 | — | — | — | High thermal conductivity, bearing wear-resistant | Injection & Extrusion |
Series 6 · 5 Grades
10–30% ceramic-filled PEEK — high rigidity, dimensional stability and clean drilling for precision-machined parts.
Ceramic Modified
| Grade | Ceramic % | Flow | Process / Use |
|---|---|---|---|
| PF-1CM10-H | 10% | High | Extrusion |
| PF-1CM10-L | 10% | Low | Extrusion |
| PF-1CM20-H | 20% | High | Injection |
| PF-1CM20-M | 20% | Medium | Injection |
| PF-1CM30-M | 30% | Medium | Injection |
Series 7 · 2 Grades
PEEK raw material for medical implants and device manufacturing. Actual implant approval requires customer-side regulatory validation.
Medical Implantable Grade
| Grade | Type | Key Features | Process |
|---|---|---|---|
| PF-1ZR3G | Implant-Grade Pellet | Implant injection specific, high-flow, biological evaluation, master file registration support | Injection |
| PF-1ZR7G | Implant-Grade Pellet | Implant injection specific, high-flow, biological evaluation, master file registration support | Injection & Extrusion |
Series 8 · 13 Grades
Modified PEEK for semiconductor wafer carriers, anti-static (ESD) extrusion / injection / compression, atomizer-specific resins, and color-customized grades.
Application-Specific Materials
| Grade | Type | Flow | Key Features | Process |
|---|---|---|---|---|
| PF-1WA251 | Wafer Carrier | High | Stable surface resistivity, low outgassing, wear-resistant, dimensional stability, ESD | Injection |
| PF-1WA252 | Wafer Carrier | High | Stable surface resistivity, low outgassing, wear-resistant, dimensional stability, ESD | Injection |
| PF-1WA253 | Wafer Carrier | High | Stable surface resistivity, low outgassing, wear-resistant, dimensional stability, ESD | Injection |
| PF-1WA254 | Wafer Carrier | High | Stable surface resistivity, low outgassing, wear-resistant, dimensional stability, ESD | Injection |
| PF-1WA255 | Wafer Carrier | High | Stable surface resistivity, low outgassing, wear-resistant, dimensional stability, ESD | Injection |
| PF-1ECF01-H | Atomizer Series | High | Atomizer-specific, HDT, rigidity, dimensional stability (HDT 160 °C) | Injection & Extrusion |
| PF-1ECF01-M | Atomizer Series | Medium | Atomizer-specific, HDT, rigidity, dimensional stability (HDT 160 °C) | Injection & Extrusion |
| PF-1ESDE01 | ESD Extrusion | — | Stable surface resistivity, extrusion-grade anti-static | Extrusion |
| PF-1ESDE02 | ESD Extrusion | — | Stable surface resistivity, extrusion-grade anti-static | Extrusion |
| PF-1ESDJ02 | ESD Injection | — | Stable surface resistivity, injection-grade anti-static | Compression |
| PF-1ESDP01 | ESD Compression | — | Stable surface resistivity, compression-grade anti-static | Compression |
| PF-1ESDP02 | ESD Compression | — | Stable surface resistivity, compression-grade anti-static | Compression |
| PF-1YF | Custom Color Series | — | Custom color, excellent electrical insulation, heat-resistant | Injection / Extrusion / Compression / Spray |
Big-Brand Equivalents
Peflon PF-1 PEEK grades are widely used as cost-effective, quality-matched replacements for the following industry-leading PEEK brands. Send us your current spec and we'll match the right grade.
PEEK Brand Cross-Reference
| Brand | Series / Product | Typical Peflon Equivalent |
|---|---|---|
| Victrex® PEEK | VICTREX® 150G / 381G / 450G / 90G pellets | PF-1G-M / PF-1G-L / PF-1G-H (medium / low / high flow) |
| Solvay KetaSpire® PEEK | KetaSpire® KT-820 / KT-880 / GF30 / CF30 | PF-1GL30 / PF-1CA30 (glass / carbon-fiber reinforced) |
| Evonik VESTAKEEP® | VESTAKEEP® L4000G / 2000G / i4 implantable | PF-1G-M / PF-1G-M-BIO / PF-1ZR7G (general & implant) |
| Ensinger TECAPEEK® | TECAPEEK natural / GF30 / CF30 / TF10 | PF-1G-M / PF-1GL30 / PF-1CA30 / PF-1FC30 |
| Victrex® APTIV™ Film & Powder | VICTREX® 150PF / 150UF ultra-fine powders | PF-1UPF15 / PF-1UPF22 / PF-1PF50 (15–50 μm powder) |
| Greene Tweed Arlon® PEEK | Arlon® 1000 / 1160 wear-resistant compounds | PF-1FC30 / PF-1WT351 (wear & bearing grades) |
FAQ
FAQ — PEEK Material
How do I read the PF-1 PEEK grade code?
The code is semantic. PF-1 = Peflon PEEK series. The letters after the dash identify form / filler — G = pellet, P = coarse powder, PF/UPF = fine / ultra-fine powder, GL = glass fiber, CA = carbon fiber, FC/FE/GHM = wear-resistant, CM = ceramic modified. Numbers = filler % or D50 μm. Suffix L/M/H/UH = flow rating. Example: PF-1GL30-H = Peflon PEEK with 30% glass fiber, high flow.How does Peflon PEEK compare with Victrex, Solvay KetaSpire and Evonik VESTAKEEP?
Peflon PF-1 PEEK grades match the property profile of mainstream PEEK suppliers across pellet, powder, glass-fiber and carbon-fiber families. See the cross-reference table above for typical match-ups. Send us your current spec sheet and we will recommend the matching PF-1 grade.What's the difference between coarse powder (P) and fine powder (PF / UPF)?
Coarse powder (P series) is the modification feedstock — used as the base for compounding and grinding into finer powders. Fine powder (PF) typically D50 50–99 μm for compression molding and 3D printing. Ultra-fine powder (UPF) D50 13–26 μm for electrostatic spray, prepreg and water-based coatings.Which grade should I choose for compression molding?
Coarse powder PF-1P-L / PF-1P-M, or fine powder PF-1PF99-L / PF-1PF74-L / PF-1PF50-M depending on target density and surface finish. Compression-molded bearings → PF-1RD01.What's the highest HDT achievable with Peflon PEEK?
Glass-fiber reinforced grades reach HDT 335 °C (PF-1GL30-UH); carbon-fiber reinforced grades reach 339 °C (PF-1CA30-H). Pure resin sits at 152–156 °C. Confirm processing parameters with our engineering team for your specific tooling.Can Peflon supply implantable PEEK?
Yes — PF-1ZR3G and PF-1ZR7G are designed for medical implant injection. Biocompatibility evaluation and master-file registration support are available. Final approval for end-use medical devices requires customer-side regulatory validation.Do you support OEM color, custom filler ratio and packaging?
Yes — Peflon offers OEM / ODM service across the whole PEEK portfolio. Custom color, filler percentage, particle size and packaging (drum / bag / private label) are supported for repeat OEM customers.Related Products
Related High-Performance Polymers
PEEK Powder
Compression / spray / composite-grade PEEK powders (PF-1P / PF-1PF / PF-1UPF series).
Learn More
PTFE Material
Virgin PTFE pellets, powders and dispersion across the full fluoropolymer family.
Learn More
PFA Resin
High-purity PFA for semiconductor, chemical and ultra-high-temperature service.
Learn More
Technical Support
Choosing the right PEEK grade raises real engineering questions — grade code, glass vs carbon reinforcement, processing temperatures and cost drivers. Our technical library shares practical, hands-on guidance from the Peflon PEEK team.
Technical Support for PEEK Material Selection
Article
How to Choose PEEK for High-Temperature Parts
HDT reads like a service temperature. It isn't. Here's how Tg, Tm, HDT, and RTI really set PEEK's heat limits — and how to pick the right grade.
Article
PEEK Material Processing Guide
Learn how to process PEEK material correctly. This guide covers common PEEK extrusion, injection molding, compression molding, 3D printing, and machining defects with practical troubleshooting tips.
Article
Why is PEEK Plastic So Expensive?
PEEK plastic's high cost stems from its complex synthesis and exceptional properties. PEEK is expensive due to its intricate manufacturing process, limited supply, and high demand in specialized…
Get in Touch
Send Your PEEK Spec — We'll Match the Right PF-1 Grade
Tell us your application, target performance, filler ratio, color and packaging — Peflon's engineering team will recommend the matching grade from our 92-grade PF-1 PEEK lineup, with samples and full documentation within 24 hours.
