One-Piece Molded PTFE Wet-Process Tanks
Seamless, one-piece compression-molded PTFE tanks for semiconductor wet processing — no weld seams, no leak paths, no particle-trapping joints. Molded in one piece up to 600 × 450 × 315 mm on our own in-house-developed molds, for RCA cleaning, piranha, HF and BOE baths.
What is a One-piece Molded PTFE Wet-process Tank?

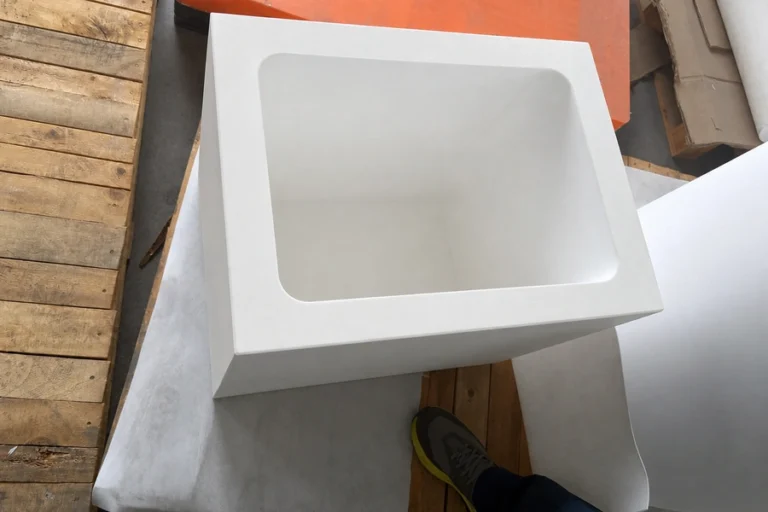

A one-piece molded PTFE wet-process tank is a semiconductor bath compression-molded as a single seamless part — not welded or bonded from PTFE sheet. Peflon molds these in one piece up to 600 × 450 × 315 mm on molds we design and build in-house, then prototype and validate before production.
PTFE is the reference material for wet benches because it resists essentially every wet-process chemistry — SC-1 and SC-2 (RCA clean), piranha (H₂SO₄/H₂O₂), HF, buffered oxide etch (BOE), HCl, HNO₃ and hot H₂O₂ — up to about 260 °C. The limit of a PTFE tank is not the polymer but the joints: welded tanks fail at their seams. Molding in one piece removes that failure mode.
Key terms:
- Wet process — semiconductor cleaning/etching steps run in liquid chemistry baths.
- RCA clean (SC-1 / SC-2) — standard wafer cleans; SC-1 = NH₄OH/H₂O₂/H₂O, SC-2 = HCl/H₂O₂/H₂O.
- Seamless molding — forming the whole tank as one homogeneous piece, no weld or bond line.
- Extractables — trace ions/metals released into the bath; must be minimal for semiconductor.
Last updated: July 2026
One-piece Molded Vs. Welded Vs. Machined-and-bonded PTFE Tanks
| Property | Welded PTFE sheet | Machined & bonded | One-piece molded (Peflon) |
|---|---|---|---|
| Weld / joint seams | Yes — at every panel | At bonded joints | None |
| Leak-path risk | At each weld | At each joint | No seam paths |
| Particle generation | Weld beads trap & shed | Joint lines | Continuous surface |
| Chemical attack point | Weld line first | Adhesive/joint first | Homogeneous |
| Max monolithic size | Limited by welding | Limited by stock + joints | 600×450×315 mm |
| Custom geometry | Moderate | High, but jointed | High & seamless — self-developed molds |
Your Drawing → Our Mold → Seamless Tank
What makes these tanks possible is that we develop the molds ourselves — most PTFE fabricators can only weld sheet. That means custom geometries and fast iteration.
In-house Mold Design
We design and build the mold from your tank drawing — no reliance on outside toolmakers, so custom and large geometries are on the table.
One-piece Molding & Controlled Sintering
The whole tank is compression-molded as one piece and sintered on a controlled cycle for uniform density — seamless, crack-free.
Prototype, Machine-finish & QC
We prototype and validate the geometry, finish-machine sealing/mounting faces, and ship with a Certificate of Analysis.
Seamless Integrity, Made In-house
Zero-seam Integrity
One homogeneous piece — no weld leak paths, no particle-trapping seams, uniform chemical resistance across the whole tank.
Self-developed Molds & Prototyping
We design and build our own molds and prototype in-house, so we make large custom geometries other PTFE fabricators can’t.
Semiconductor-grade & Documented
High-purity, PFOA-free PTFE with low extractables and a per-batch COA. (Grade-specific extractable values available on request.)
Frequently Asked Questions
Why is a one-piece molded PTFE tank better than a welded one?
A welded tank has seams that leak, trap and shed particles, and are attacked by hot chemistry first. A one-piece molded tank has no seams — uniform strength, purity and chemical resistance throughout.
What wet-process chemistries can it handle?
PTFE resists essentially all wet-bench chemistries: SC-1 and SC-2 (RCA clean), piranha (H₂SO₄/H₂O₂), HF, buffered oxide etch (BOE), HCl, HNO₃ and hot H₂O₂ — up to about 260 °C.
What is the maximum one-piece tank size?
We mold tanks in one seamless piece up to 600 × 450 × 315 mm. Larger or different geometries — send your drawing.
Is the PTFE high-purity / semiconductor grade?
Yes — high-purity, PFOA-free PTFE with low ionic/metal extractables and a per-batch Certificate of Analysis.
Can you make a custom tank from our drawing?
Yes. We design and build the mold in-house from your drawing, prototype and validate it, then produce.
What operating temperature do the tanks handle?
PTFE has a continuous service temperature around 260 °C, covering hot piranha and RCA baths.
Do you provide material traceability and a COA?
Yes — each tank ships with a per-batch Certificate of Analysis and PFOA-free / REACH / RoHS documentation.
What is the lead time for a custom molded tank?
A custom tank runs mold build → prototype → production; contact us with your drawing for exact lead times.
Send Us Your Tank Drawing — We’ll Mold It in One Piece.
Seamless PTFE wet-process tanks up to 600×450×315 mm, from our own molds, for semiconductor cleaning and etch baths.
